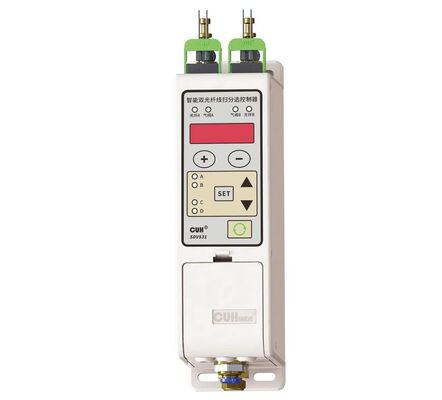

Sdvs31 Intelligent Optical Fiber Sorting Controller
| MOQ: | 1 |
| Price: | 400 |
Detail Information
Model NO.:
SDVS31
Feeding Size:
≤300 Mm
Motor Power(kw):
1~10
Type:
Vibration Disk Feeder
Usage:
Precision Fiber Sorting Controller
Transport Package:
Carton Packaging
Specification:
250*150*120mm
Trademark:
CUH
Origin:
China
HS Code:
8537101990
Production Capacity:
500000PCS/Year
Product Description
Product Feature
Dual-fiber optic amplifiers and valves are integrated into one controller.
Relying on the time domain characteristics of optical fiber signals to identify parts' orientations, it is capable of identifying parts with complex shapes.
It is easy and simple to collect signal data and train the controller, eliminating complex parameter settings.
Sunlight and incandescent light immune optical fiber amplifiers.
Dual independent air flow volume adjustment.
Dual self-adapting NPN/PNP switch sensor interfaces.
Dual push-pull type 24V/400mA DC output.
Comprehensive protection functions including undervoltage, overvoltage, inverse wiring, overcurrent, and short-circuit protections.
Parameter group quick switch.
Input-output matrix combination and complex logical relation setting.
Input-output timing sequence defines output mode selection.
Independent parameter reset functions help to avoid resetting all parameters.
Built-in air valve action counting function helps you evaluate the lifetime of the valves.
Dual anti-jamming capability allows two fibers to work together nearby
The built-in ability to learn the distribution of material characteristics can significantly improve the reliability of feeding parts sorting.
