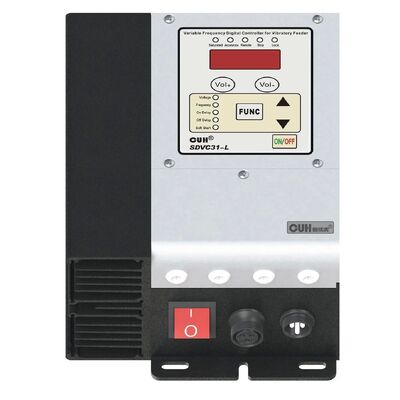

Sdvc31-L (4.5A) Variable Frequency Digital Controller for Vibratory Feeder
| MOQ: | 1 |
| Price: | 145 |
Detail Information
Model NO.:
SDVC31-L
Feeding Size:
300-500 Mm
Motor Power(kw):
1~10
Type:
Vibration Disk Feeder
Usage:
Vibration Feeding Controller
Voltage:
110V&220V
Frequency:
40-400Hz
Current:
4.5A
Transport Package:
Carton Packaging
Specification:
300*250*150mm
Trademark:
CUH
Origin:
China
HS Code:
8537101990
Production Capacity:
500000PCS/Year
Product Description
Variable Frequency Digital Controller
Product Feature
Profile information:Frequency Adjustment,Automatic High Precision Voltage Regulation,Time Adjustable Soft Start,Switch Sensor ON/OFF Control,Photoelectric Sensor ON/OFF Control,Remote Speed Control,DC Control Output,Keypad Lock,Digital Overheat Protection,Overcurrent Protection,Restorable Short Circuit Protection,Max Adjustable Output Voltage
CE certified, RoHS compliant.
Frequency Adjustment: The controller's output frequency can be manually adjusted to match the resonant frequency of the vibratory feeder, resulting in a smooth, quiet, and energy-saving feed effect.
Automatic High Precision Voltage Regulation: The internal digital voltage regulation circuit can eliminate feed speed variation caused by mains voltage fluctuation.
Time Adjustable Soft Start: The controller will gently increase output voltage from 0 to the preset value when powered on to avoid sudden shock. Soft start time can be digitally preset.
Switch Sensor ON/OFF Control: Support NPN/PNP sensors or PLC remote full/empty shutdown control.
Photoelectric Sensor ON/OFF Control: The CUH Intelligent Photoelectric Sensor can be connected to turn on/off the controller.
Remote Speed Control: The output voltage of the controller can be adjusted
remotely by an external potentiometer, a PLC, or a 1-5V DC signal.
DC Control Output: The controller can output low-voltage DC power associated with ON/OFF Control of the controller to drive a solenoid or other external devices.
Keypad Lock: Lock all buttons on the keypad to prevent misoperation by pressing the ON/OFF button and holding for 2 seconds.
Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection: If the output of the controller is short-circuited, the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit at the output side, the controller will work again after being powered on.
Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the load from damage caused by too high a voltage.
