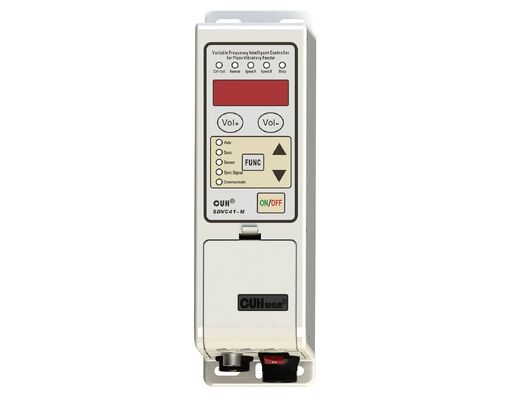

Sdvc41-M (300mA) Variable Frequency Intelligent Controller for Piezo Vibratory Feeder
| MOQ: | 1 |
| Price: | 300 |
Detail Information
Model NO.:
SDVC41-M
Feeding Size:
300-500 Mm
Motor Power(kw):
1~10
Type:
Vibration Disk Feeder
Usage:
Vibration Feeding Controller
Transport Package:
Carton Packaging
Specification:
300*250*150mm
Trademark:
CUH
Origin:
China
Product Description
Variable Frequency Digital Controller for Piezo Feeder
Product Feature
Profile information:Capacitive Load,Automatic Constant Feed Speed Control,Automatic Resonant,Frequency Search,RS485 Communication,Automatic Switch Sensor Type Recognition,Sync output,Remote Speed Control,Digital Overheat Protection,Overcurrent Protection,Restorable Short Circuit Protection
Capacitive Load: The controller is adaptive to resistive load, inductive load and specially capacitive load such as a piezo vibrator.
Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real time to ensure constant preset feed speed regardless of weight change of the workpieces
Automatic Resonant Frequency Search: Search out and output resonant frequency of the load. other related parameters are also set automatically.
RS485 Communication: All parameters of the controller can be adjusted via RS485.
Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN type switch sensors.
Sync output: Sync output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid beat effect.
Remote Speed Control: Output Voltage/Feed Speed of the controller can be adjusted remotely by an external potentiometer, a PLC, a 1-5V or 4-22mA DC signal.
Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect Itself.
Overcurrent Protection: If output current exceeds its rated value, the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection: If output of the controller is short-circuited, the controller will shut down its output to protect itself and the load. But the fuse inside will not be blown So when there is no short circuit at the output side, the controller will work again after power on.
