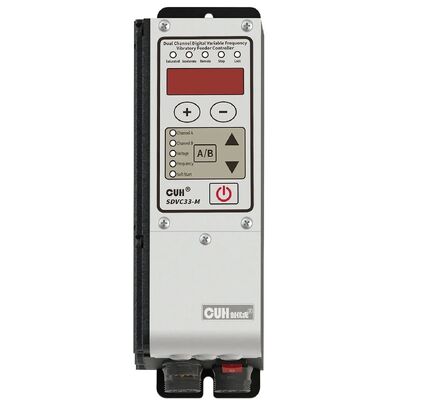

Sdvc33-M (3.5A) Dual Channel Digital Variable Frequency Vibratory Feeder Controller
| MOQ: | 1 |
| Price: | 125 |
Detail Information
Model NO.:
SDVC33-M
Feeding Size:
≤300 Mm
Motor Power(kw):
1~10
Type:
Vibration Disk Feeder
Usage:
Vibration Feeding Controller
Transport Package:
Carton Packaging
Specification:
250*150*120mm
Trademark:
CUH
Origin:
China
HS Code:
8537101990
Production Capacity:
500000PCS/Year
Product Description
Dual-channel digital frequency conversion vibration feeder controller
Product Feature
The category:Variable Frequency Digital Controller
Profile information:Dual Channel Digital Variable Frequency Vibratory Feeder Controller
SDVC33 Dual Digital FM Vibration Feed Controller is a compact general-purpose dual FM output controller that provides unique performance through the use of the latest electronic technology and careful design. Its special features include:
Dual-channel power output that can distribute current arbitrarily, supports setting the overcurrent protection current of each channel.
Dual-channel working mode can choose frequency tracking, voltage tracking, or frequency-voltage dual tracking.
During frequency tracking, the phase difference between the two outputs can be set from 180°~180°.
The output frequency range covers 5Hz to 999.9Hz with 0.1Hz accuracy.
Brake function to quickly stop the vibratory feeder by shifting the current phase by 180° during the soft-stop process.
Intelligent photoelectric ports support photo-sensors, NPN, or PNP switch sensors.
