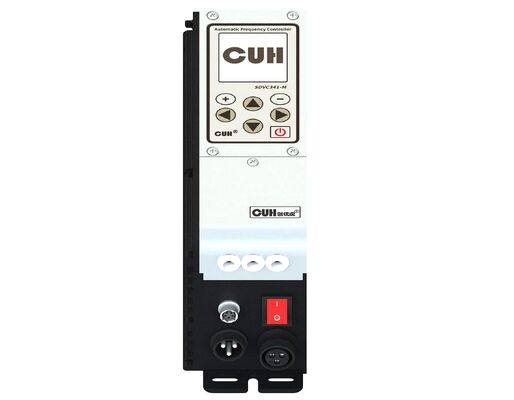

Sdvc341-M Automatic Frequency Controller for Vibratory Feeder Vibration Feeding Controller
| MOQ: | 1 |
| Price: | 320 |
Detail Information
Model NO.:
SDVC341-M
Feeding Size:
≤300 Mm
Motor Power(kw):
1~10
Type:
Vibration Disk Feeder
Usage:
Vibration Feeding Controller
Transport Package:
Carton Packaging
Specification:
250*150*120mm
Trademark:
CUH
Origin:
China
HS Code:
8537101990
Production Capacity:
500000PCS/Year
Product Description
Variable Frequency Intelligent Controller
Product Feature
Profile information:Automatic Constant Feed Speed Control, Automatic Frequency Adjustment, Automatic Resonant Frequency Search, Counting, RS485 Communication, Automatic Switch Sensor Type Recognition, Sync Output, Overvoltage Protection, Digital Overheat Protection, Overcurrent Protection, Restorable Short Circuit Protection. Users can follow the following expansion and addition steps to add a new controller to the existing network. The new controller, after joining, can call the signal of any controller in the network and act as a controller signal source as any other controller in the network. Enrich system signal sources.
Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset feed speed regardless of the weight change of the workpieces.
Automatic Resonant Frequency Search: Search out and output the resonant frequency of the load. Other related parameters are also set automatically
RS-485 Communication: All parameters of the controller can be adjusted via RS-485.
Sync Output: Sync the output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid the beat effect
Digital Overheat Protection: If the internal temperature of the controller gets too high, the controller will stop its output to protect itself.
Overcurrent Protection: If the output current exceeds its rated value, the controller will stop its output to protect itself and the load.
Restorable Short Circuit Protection: If the controller's output is short-circuited, it will shut down its production to protect itself and the load. But the fuse inside will not be blown. So when there is no short circuit on the output side, the controller will work again after the power is on.
